DESCRIPTION

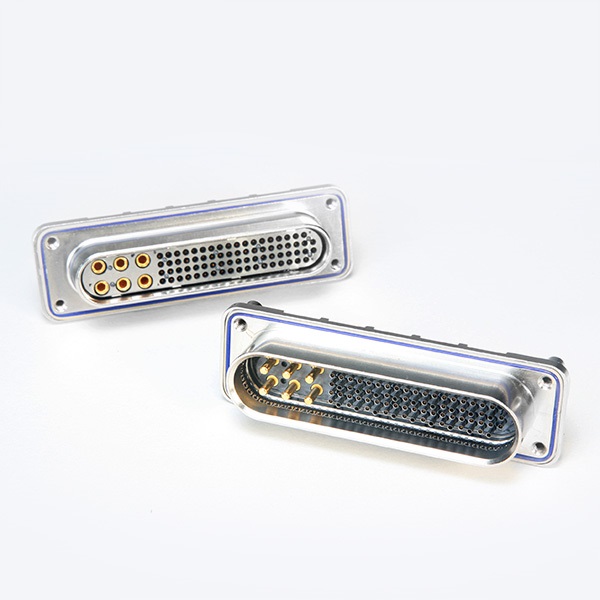

This connector series utilizes Amphenol’s durable and reliable B3 contact system in a rugged, non-floating Rack and Panel connector. Included in this series are digital and power/digital “hybrid” insert arrangements. The hybrid series utilizes Amphenol’s high performance RADSOK® power contacts along with Amphenol’s proven B3 contact.

FEATURES AND BENEFITS

• High performance B3 brush contacts
• 0.100 inch x 0.100 inch square grid footprint
• Environmentally sealed at connector interface when mated (optional feature)
• Environmentally sealed connector mounting interface
• EMI protection is available at mounting surfaces and connector interface
• ESD protection is available – allows use of Class 3 hardened chips (4KV max. voltage)
• Tapered mating surface provides near zero X & Y plane movement between mated connectors
