DESCRIPTION

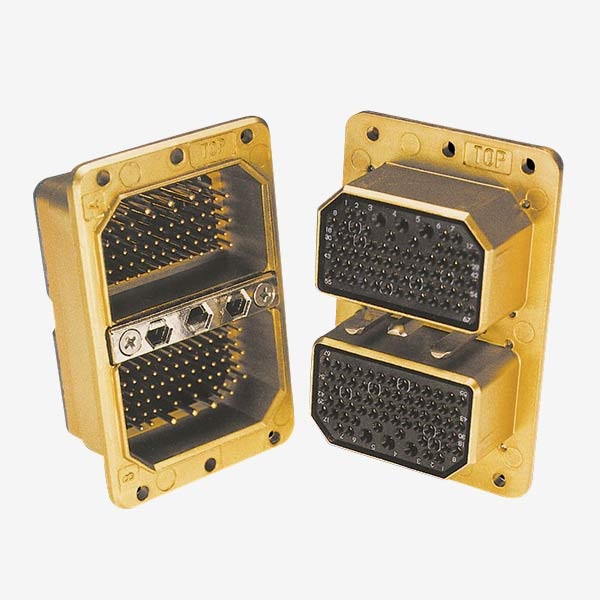

ARINC 404 connectors and the Military equivalent MIL-DTL-81659 are a long time standard in both military and commercial aviation LRU’s. These connectors come in 4 sizes that can hold up to 424 individual contacts. Amphenol is the world leader in the filtering of this series and has many capabilities to meet our customer's varied requirements. This includes, but is not limited to, Pi, C, LC, T filters, as well as the addition of transient suppression diodes to allow for the successful EMC test requirements of DO-160.

FEATURES AND BENEFITS

• Available in five shell styles with up to four insert cavities
• Inserts accommodate signal and power contacts in sizes 12, 16, 20, and 22
• Coaxial contacts are available in sizes 5 and 9
• Combination standard and coaxial contact arrangements available
• Both non-environmental and environmental options offered
