DESCRIPTION

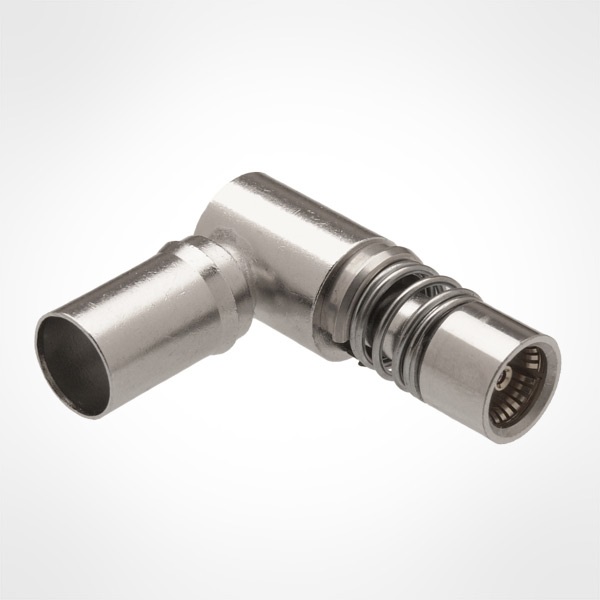

Government designation BMA (Blindmate A) was developed in the 1980's. The originally designated OSP™ connector by M/A-Com has excellent electrical performance up to 22 GHz in a compact size. SV Microwave offers extended frequencies on most BMA connector designs up to 26.5 GHz. With a slide-on interface and a connector durability of 5000 cycles, the BMA blindmate is suitable for high performance microwave applications.

FEATURES AND BENEFITS

• Blindmate / push on design (RFfortless®)
• Frequency to 22 GHz; Interchangeable with other manufacturer's BMA connectors
• Subminiature design
• Designed to the interface dimensions of MIL-STD-348
• Hermetic Versions available
• Low Profile Design
• Maximum of .020' radial and .060' axial misalignment
