DESCRIPTION

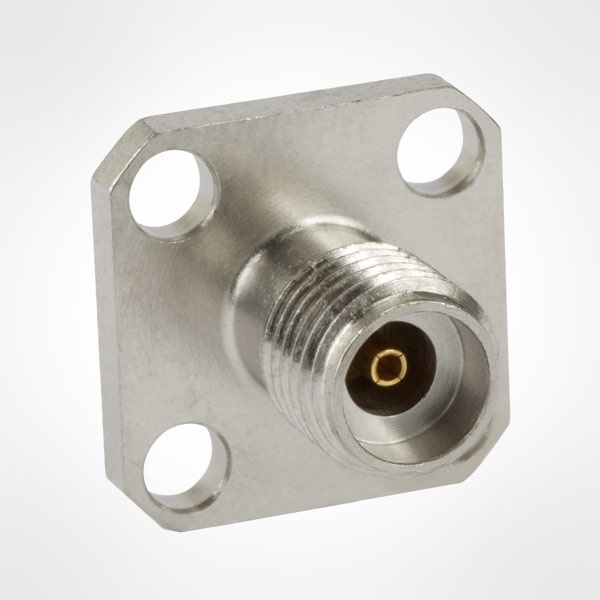

The 2.92mm connector was developed for use to 40 GHz. The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm connector. The 2.92mm connector also has a thicker wall than a standard SMA. The 2.92mm series mates with SMA and 3.5mm connectors.

FEATURES AND BENEFITS

• Frequency range DC to 40 GHz (usable to 46 GHz)
• Low VSWR
• Low RF Leakage with superior reliability
• Compatible with SMA and 3.5mm connector series
