DESCRIPTION

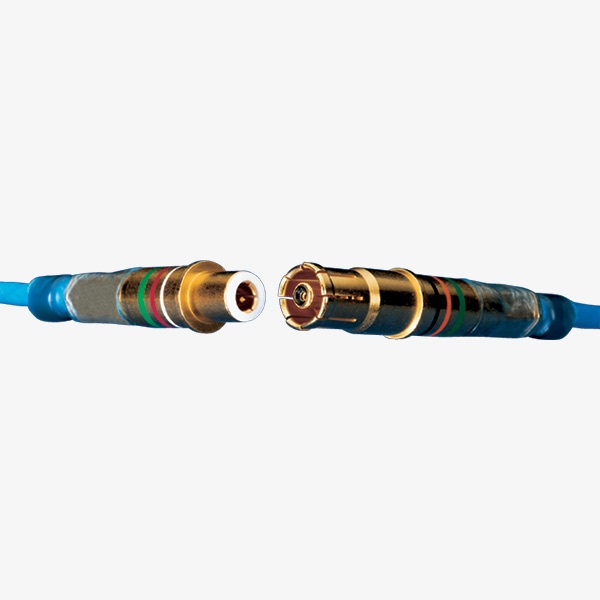

The size 8 Concentric Twinax contact was developed for use in MIL-STD-1553 Airborne multiplex data bus applications which require high performance interconnect characteristics in multi-pin connectors. Ideal for this application need is the high performance Tri-Start connector with its fully scoop-proof feature of recessed pins. The Concentric Twinax contact is crimp terminable to twisted shielded cable.

FEATURES AND BENEFITS

• Protection from magnetic and electrostatic interference including nuclear electromagnetic pulse
• Shield integrity through a multi-pin circular connector and does not require contact polarization within the insert
• 175°C rated and meets performance levels of MIL-DTL-38999 Series III connectors
• MIL-C-17/176-00002 cable termination
• Gold plated full crimp termination contacts qualified to M39029/90 & /91 and EN3155-024 and 025
• Integral part of the MIL-STD-1760 interconnection system
• Also available in modified, intermateable versions for termination to a host of cables
